Automatic calibration
Quick, hassle-free setup, allowing you to complete the setup within one minute.
Next-generation performance. Built to last.

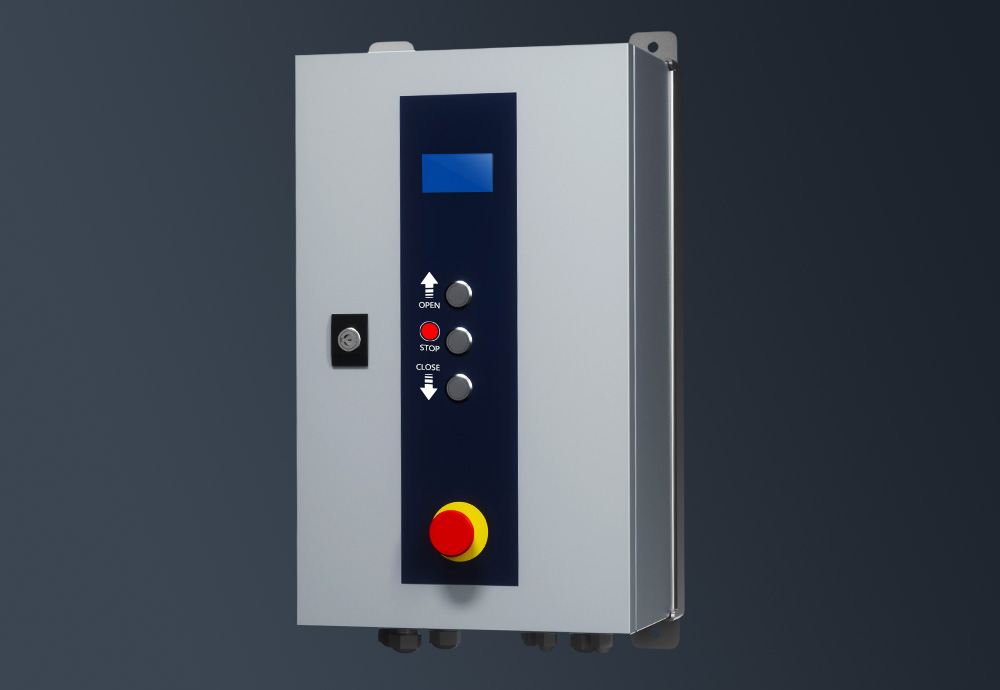

LCD plain-text display
With 4-line LCD plain-text display, you could program easily and receive diagnostics when something is wrong.

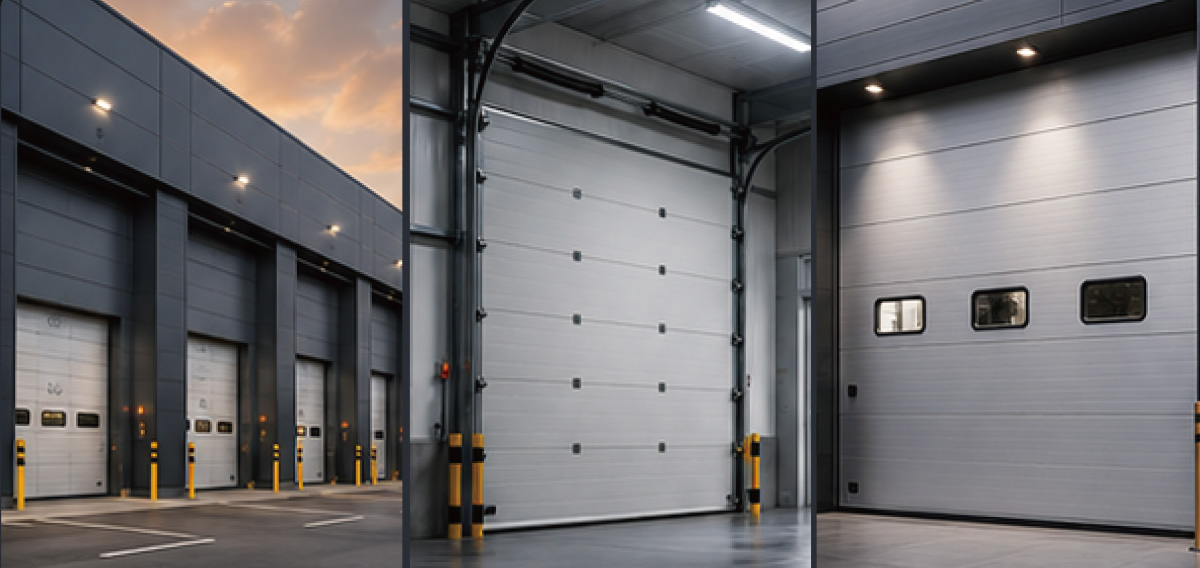

Application cases
Soft start, soft stop
Smooth start/stop offers maximum material protection and a long product life cycle.
Over-torque protection
Advanced torque monitoring system could measure the actual force and stop thedoor's movement when the door is caught in something or the spring breaks.
| Model | SV310-ISD | SV380-ISD | SV500-ISD |
|---|---|---|---|
| Voltage | 3~400 V AC 50/60 Hz | ||
| Motor power in kW | 1.5 | 1.8 | 2.5 |
| Rated output torque in Nm | 260 | 310 | 420 |
| Max. output in Nm | 310 | 380 | 500 |
| Speed in RPM | 5-50 | ||
| Diameter hollow shaft in mm | 25.44 / 31.75 | ||
| Endurance in c/h | 30 | ||
| Ratio | 1:60 | ||
| Waterproof and dustproof rating | IP54 (IP65 optional) | ||
| Limit setting of door travel | Absolute encoder | ||
| Emergency Release | Chain hoist | ||
| Max. door area m² | 90 | 100 | 120 |
