Automatic calibration
Quick, hassle-free setup, allowing you to complete the setup within one minute.
Next-generation performance.Built to last.
LCD plain-text display
With 4-line LCD plain-text display, you could program easily and receive diagnostics when something is wrong.

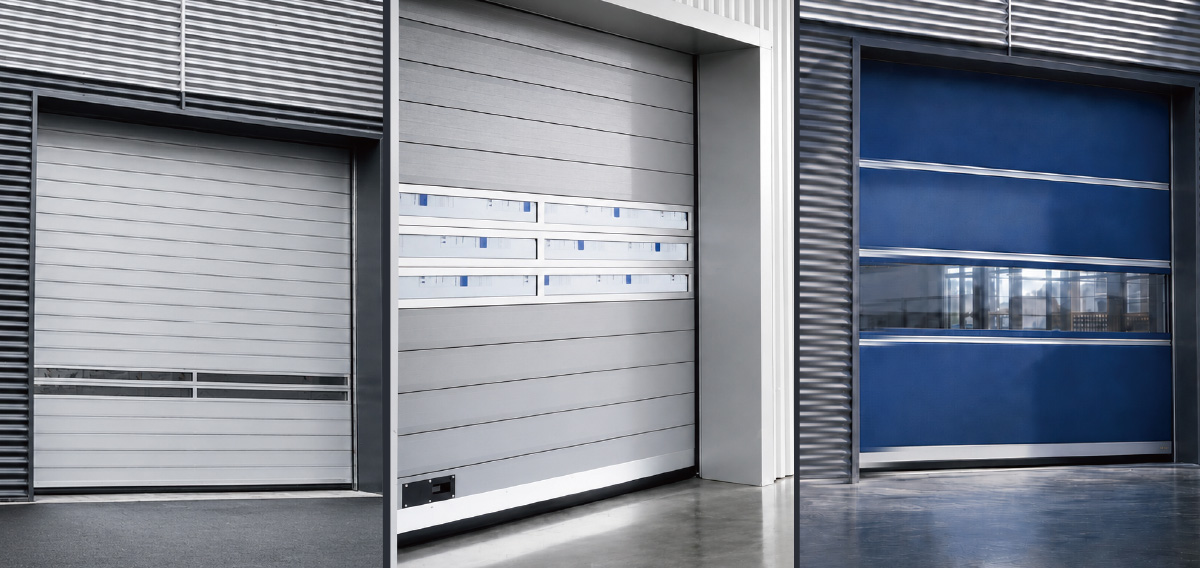

Application cases
Soft start, soft stop
Smooth start/stop offers maximum material protection and a long product life cycle.
Gear heating system optional
It can be used in cold and harsh environment, down to -40 ℃
| Model | SV190-HSD | SV250-HSD | SV290-HSD | SV480-HSD |
|---|---|---|---|---|
| Voltage | 3~400 V AC 50/60 Hz | |||
| Motor power in kW | 1.5 | 1.8 | 2.5 | 3.7 |
| Rated output torque in Nm | 160 | 200 | 240 | 420 |
| Max output torque | 190 | 250 | 290 | 480 |
| Speed in RPM | 25-150 | |||
| Diameter hollow shaft in mm | 25 / 30 / 35 / 25.44 / 31.75 | |||
| Endurance in c/h | 200 | |||
| Ratio | 1:20 | |||
| Waterproof and dustproof rating | IP54 (IP65 optional) | |||
| Limit setting of door travel | Absolute encoder | |||
| Emergency Release | Chain optional | |||
| Max. door area- in m² | 50 | 64 | 90 | 120 |
