Automatic calibration
Quick, hassle-free setup, allowing you to complete the setup within one minute.
Next-generation performance. Built to last.

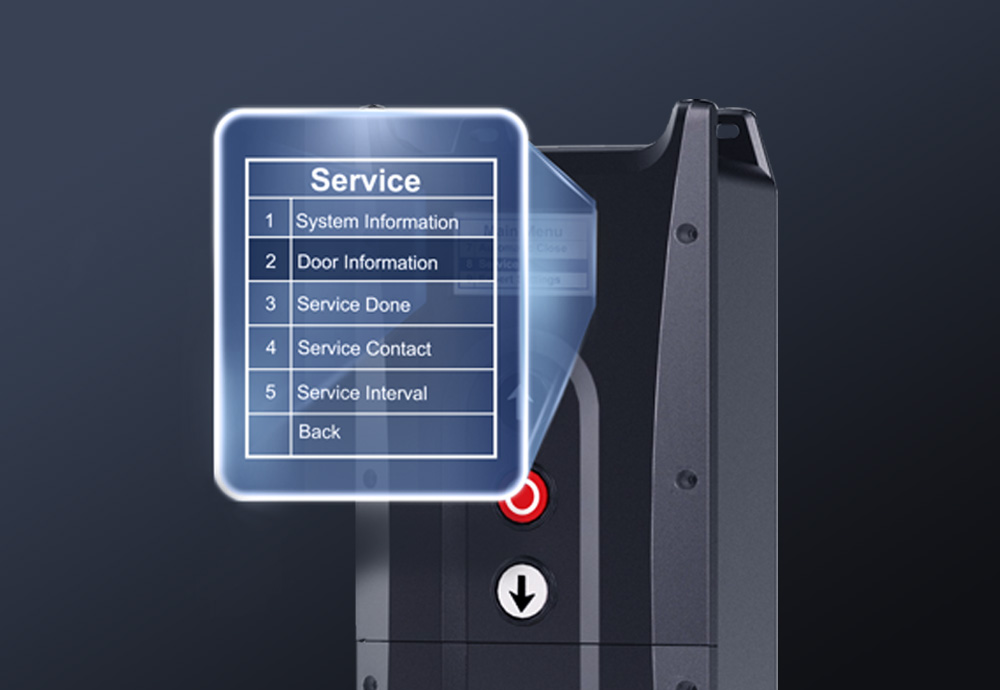

LCD plain-text display
With 4-line LCD plain-text display, you could program easily and receive diagnostics when something is wrong.

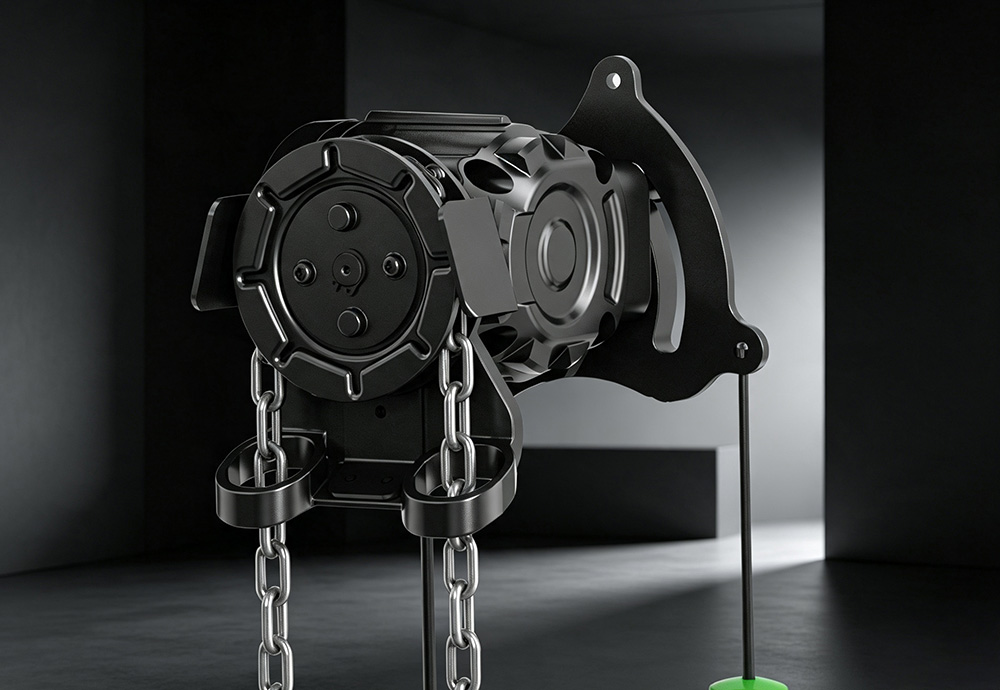

Manual release of the chain
With the manual chain release, you can operate the system manually during power outages or maintenance, ensuring your door remains functional at all times.

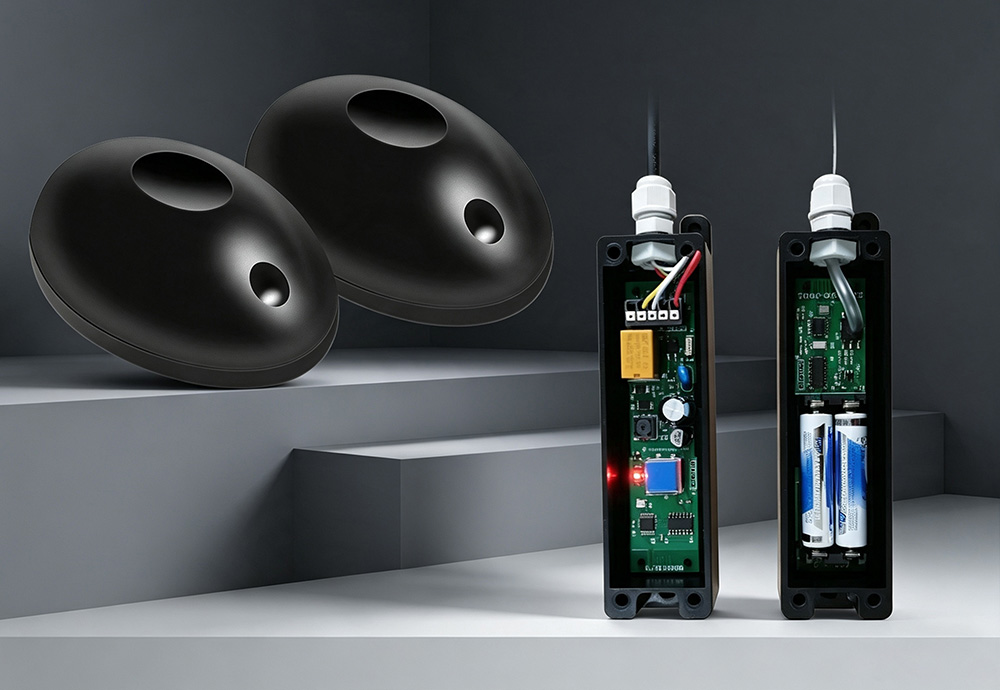

Multiple safety inputs/outputs
To enhance both the safety and automation of your system, these accessories work together to ensure reliable detection of obstacles, regulate access, and improve user experience. Whether for industrial or commercial use, the flexibility in device integration allows for customized configurations tailored to specific project needs.

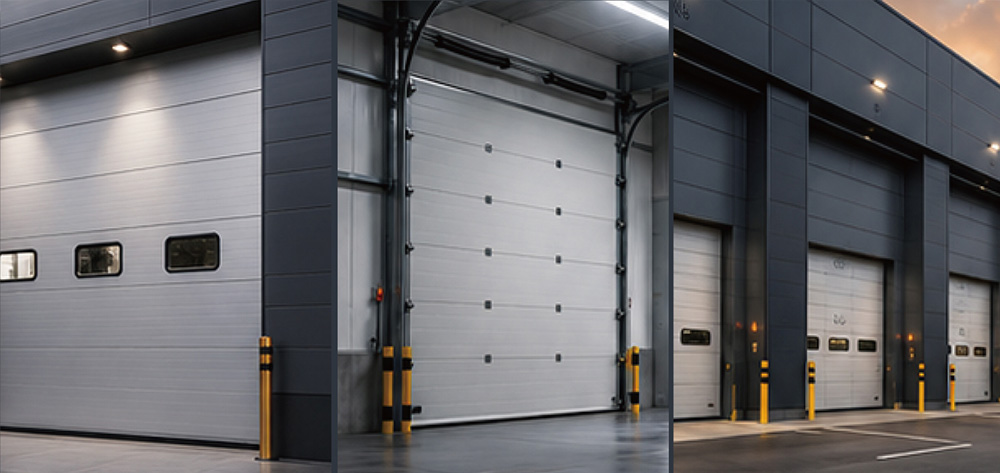

Application cases
Soft start, soft stop
Smooth start/stop offers maximum material protection and a long product life cycle.
Over-torque protection
Advanced torque monitoring detects abnormal force and stops the door in case of obstruction or spring failure.

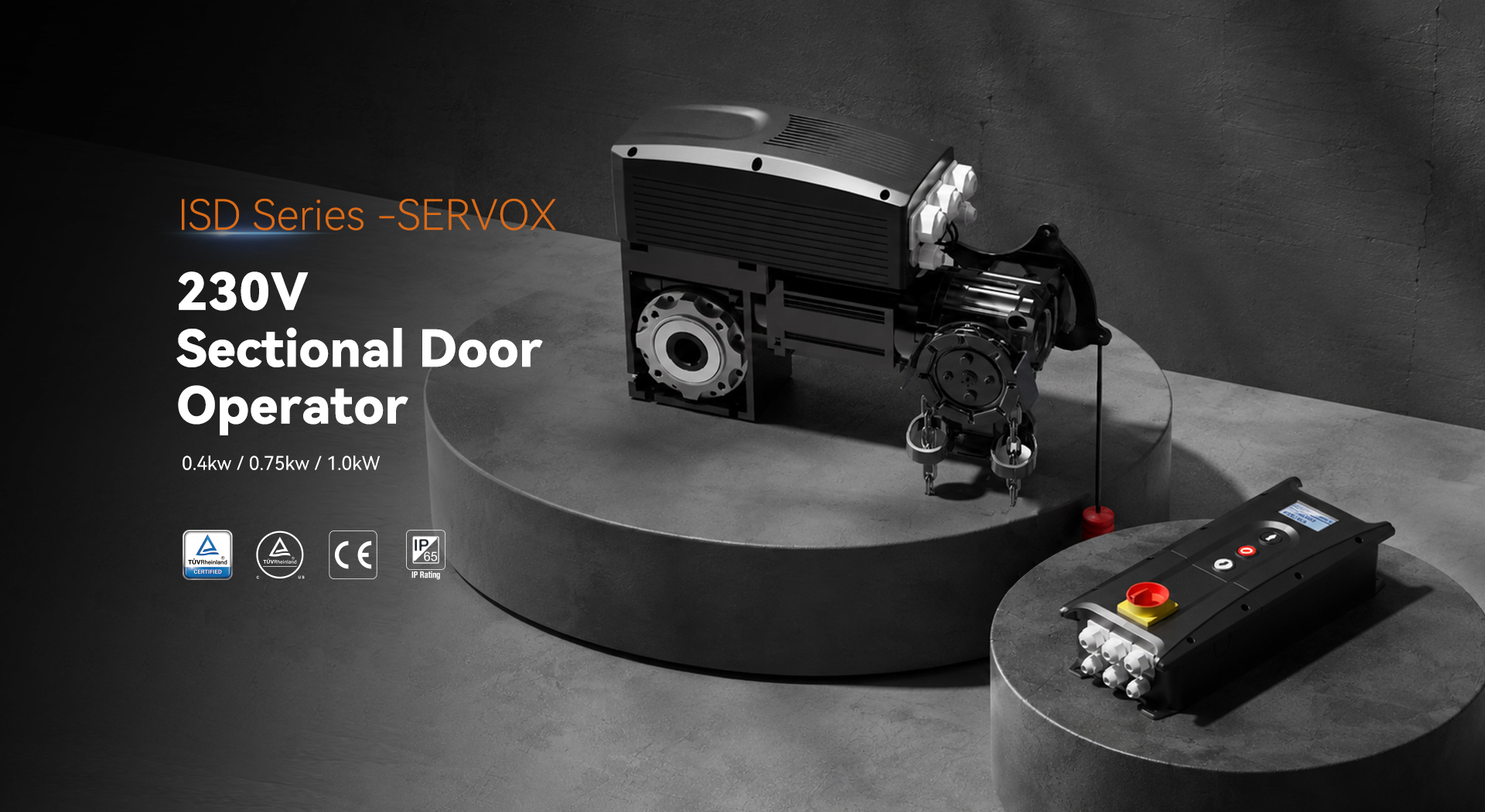

| Model | SV80-ISD | SV120-ISD | SV140-ISD |
|---|---|---|---|
| Voltage | 1 N~220-240 V AC, 50/60 Hz | ||
| Motor Power (kW) | 0.4 | 0.75 | 1.0 |
| Rated Output Torque (Nm) | 60 | 100 | 120 |
| Max. Output Torque (Nm) | 80 | 120 | 140 |
| Output Speed (rpm) | 5-50 | ||
| Hollow Shaft Diameter (mm) | 25.44 / 31.75 | ||
| Max. Operating Cycles (c/h) | 60 | ||
| Ratio | 1:60 | ||
| Operating Temperature | -20 to -55℃ | ||
| Protection Rating | IP54 (IP65 optional) | ||
| Position / Limit Detection | Absolute encoder | ||
| Emergency Release | Chain hoist | ||
| Max. Door Area (m²) | 25 | 40 | 50 |
