Automatic calibration
Quick, hassle-free setup, allowing you to complete the setup within one minute.
Next-generation performance.Built to last.
LCD plain-text display
With 4-line LCD plain-text display, you could program easily and receive diagnostics when something is wrong.

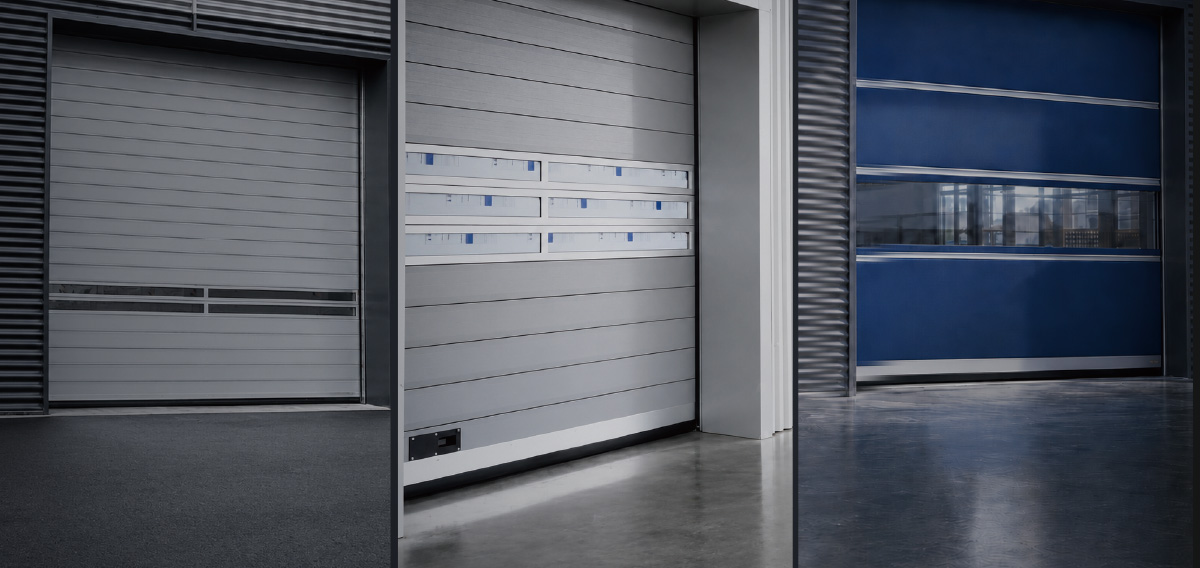

Application cases
Soft start, soft stop
Smooth start/stop offers maximum material protection and a long product life cycle.
Gear heating system optional
It can be used in cold and harsh environment, down to -40 ℃

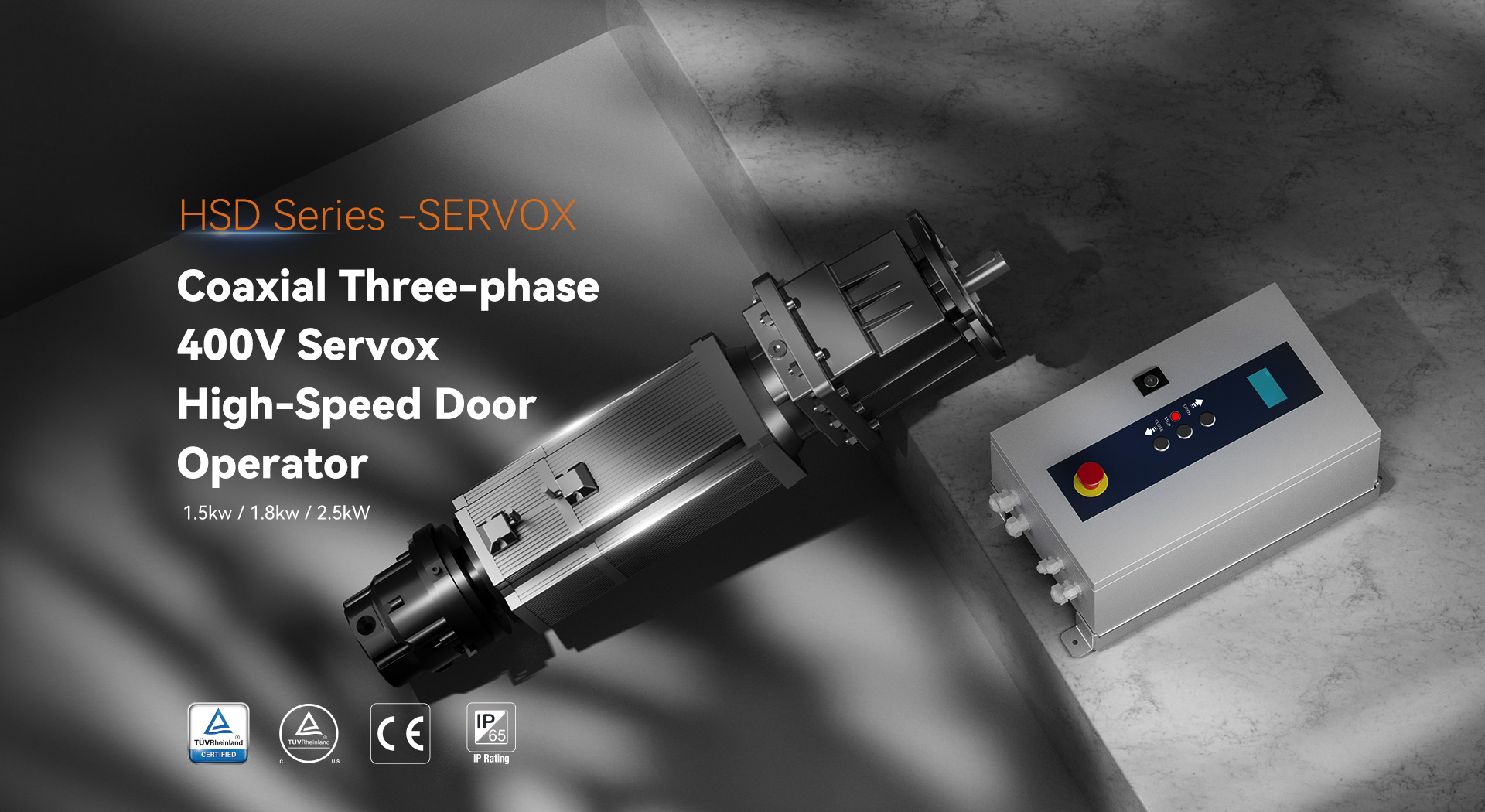

| Model | SV150-HSD | SV180-HSD | SV230-HSD |
|---|---|---|---|
| Voltage | 3~400 V AC 50/60 Hz | ||
| Motor power in kW | 1.5 | 1.8 | 2.5 |
| Rated output torque in Nm | 120 | 145 | 190 |
| Max. output in Nm | 150 | 180 | 230 |
| Speed in RPM | 40-250 | ||
| Diameter hollow shaft in mm | 25 / 30 / 35 / 25.44 / 31.75 | ||
| Endurance in c/h | 200 | ||
| Ratio | 1:11.92 | ||
| Waterproof and dustproof rating | IP54 (IP65 optional) | ||
| Limit setting of door travel | Absolute encoder | ||
| Emergency Release | Chain hoist | ||
| Max. door area m² | 40 | 50 | 60 |
