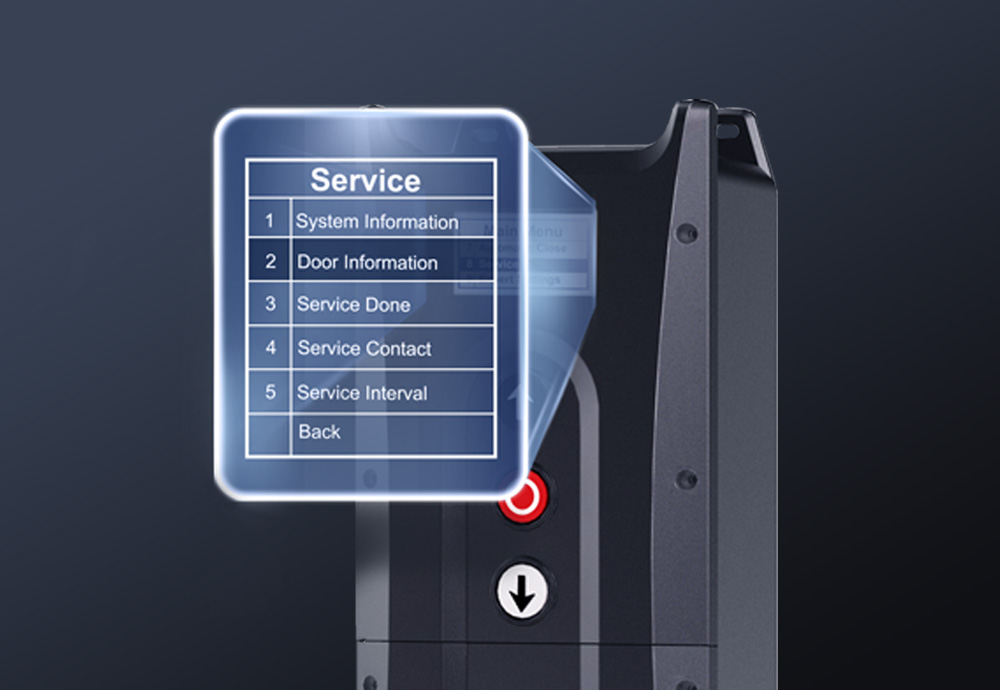

LCD Text Display
Screen with easy setup

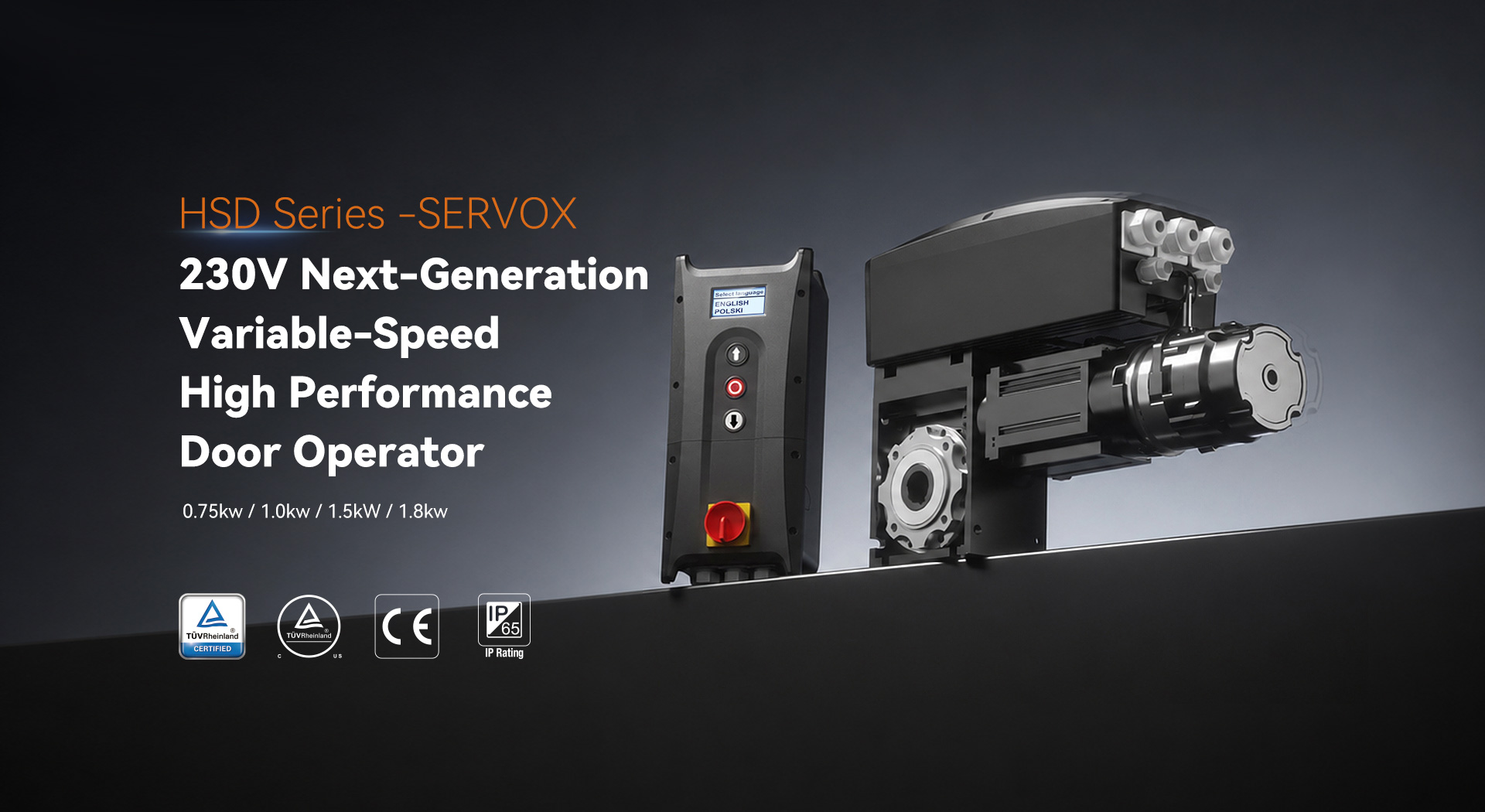

Next-Generation Variable-Speed High-Performance Door Operator
Compliant with CE-MD, CE-EMC, ISO 13849.

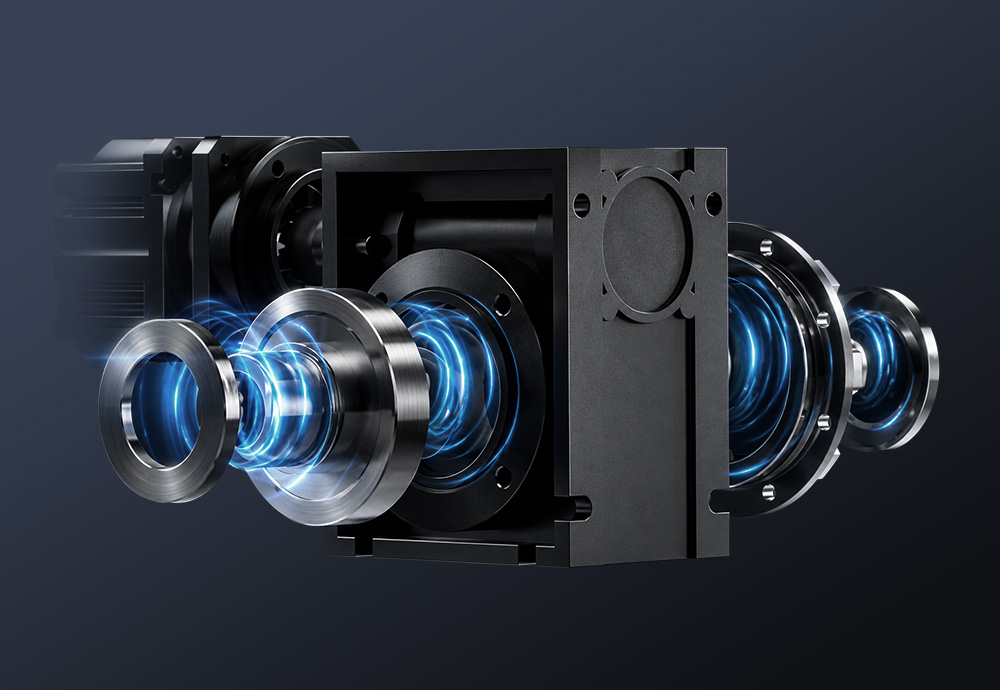

SAFETY CATCH

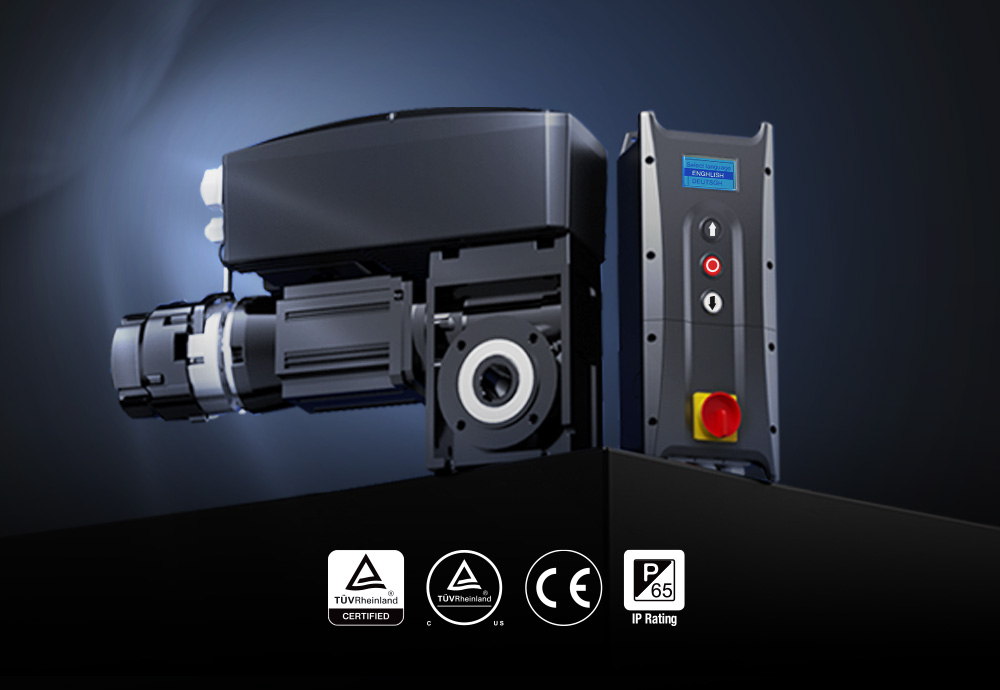

SV High Speed Door Operator, Built-in Anti-drop Protection
Multiple Safety inputs Outputs
Certified to UL325
| Model | SV75-HSD | SV100-HSD | SV150-HSD | SV180-HSD |
|---|---|---|---|---|
| Voltage | 1N~220-240 V AC, 50/60 Hz | |||
| Motor Power (kW) | 0.75 | 1.0 | 1.5 | 1.8 |
| Rated Output Torque (Nm) | 50 | 70 | 120 | 150 |
| Max. Output Torque (Nm) | 75 | 100 | 150 | 180 |
| Output Speed (rpm) | 10-150 (depends on the gearbox ratio) | |||
| Hollow Shaft Diameter (mm) | 25/30/35/40/25.44/31.75 | |||
| Max. Operating Cycles (c/h) | 200 | |||
| Ratio | 1:20 (1:15/1:25/1:30 optional) | |||
| Protection Rating | IP54 (IP65 optional) | |||
| Position / Limit Detection | Absolute encoder | |||
| Emergency Release | Crank (Chain optional) | |||
| Max. Door Area- PVC Door (m²) | 16 | 20 | 30 | 40 |
| Max. Door Area-Spiral Door (m²) | 12 | 16 | 25 | 30 |
