Automatic calibration
Quick, hassle-free setup, allowing you to complete the setup within one minute.
Next-generation performance. Built to last.

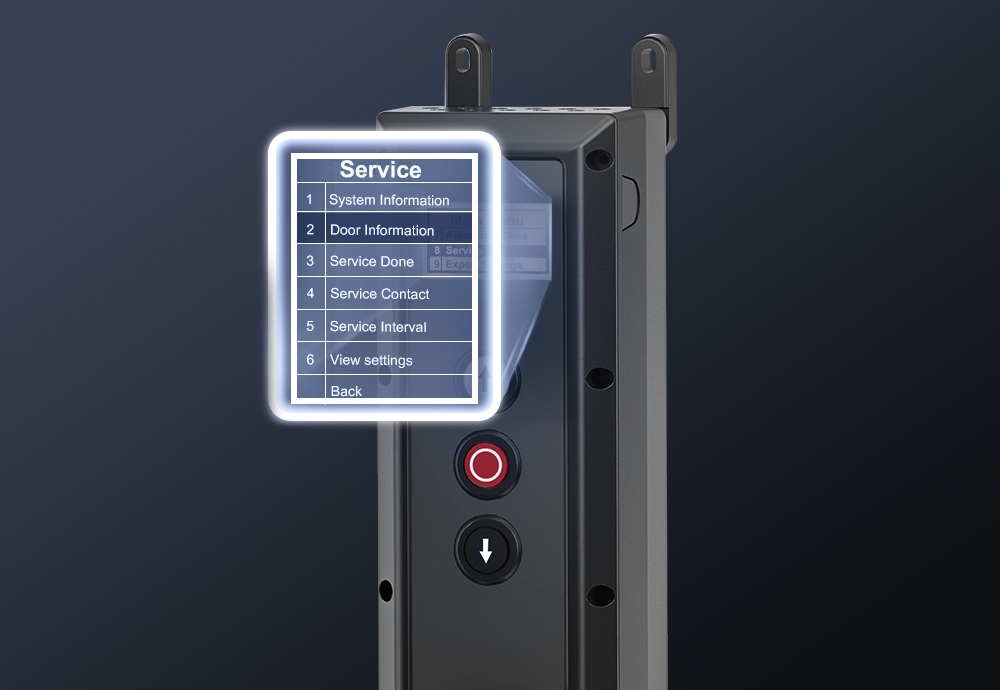

LCD plain-text display
With 4-line LCD plain-text display, you could program easily and receive diagnostics when something is wrong.
Application cases
Soft start, soft stop
Smooth start/stop offers maximum material protection and a long product life cycle.
Over-torque protection
Advanced torque monitoring system could measure the actual force and stop thedoor's movement when the door is caught in something or the spring breaks.

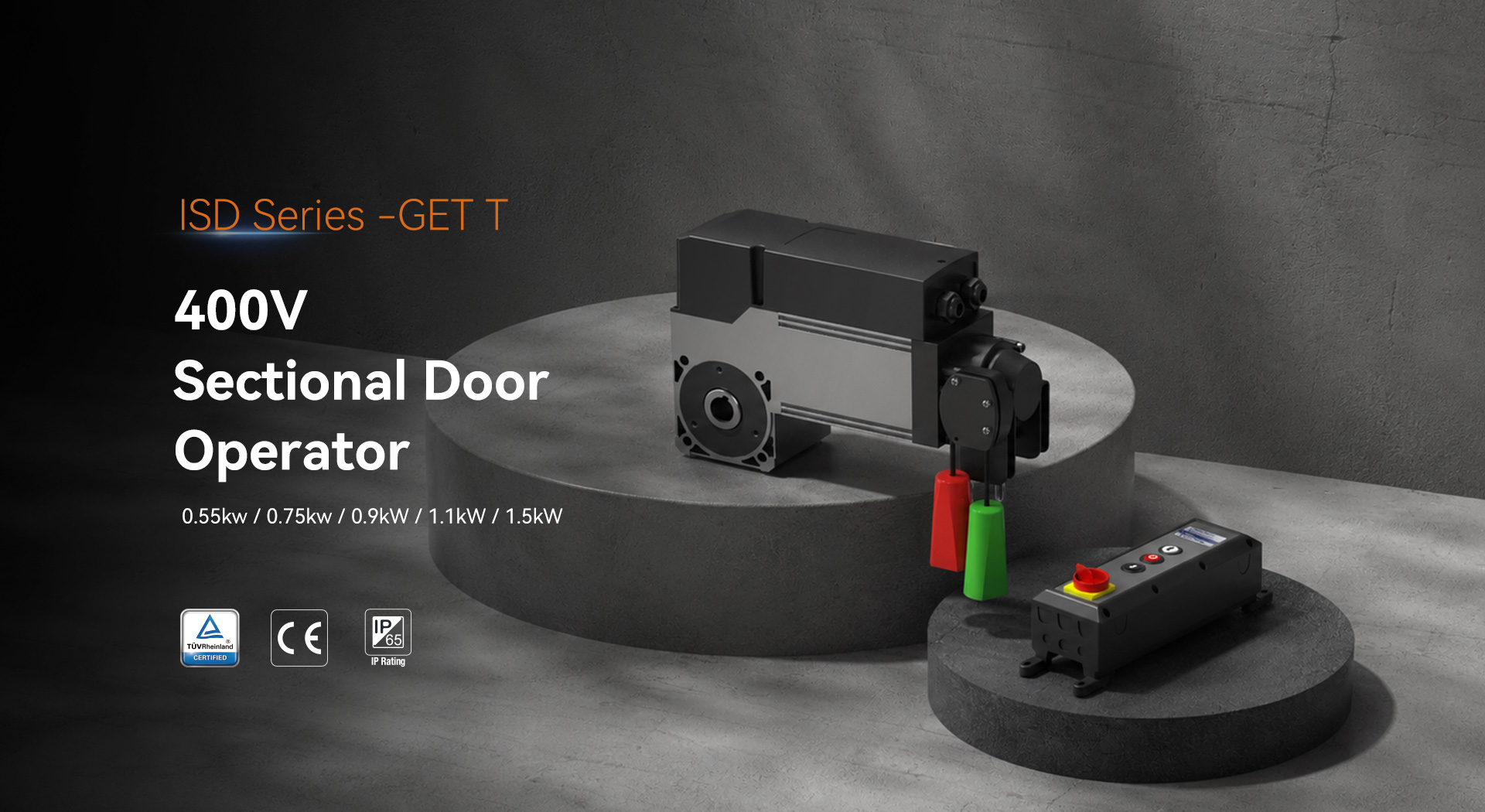

| Model | GET60T | GET100T | GET120T | GET150T | GET180T |
|---|---|---|---|---|---|
| Motor power in kW | 0.55 | 0.75 | 0.9 | 1.1 | 1.5 |
| Rated output torque in Nm | 50 | 70 | 80 | 100 | 145 |
| Max. output torque in Nm | 60 | 100 | 120 | 150 | 180 |
| Rated voltage/frequency | 3~400 V AC 50/60 Hz | ||||
| Speed in RPM | 24 | ||||
| Max. cycles per hour | 30 | ||||
| Stroke limit in revolution | 20 | ||||
| Diameter hollow shaft in mm | 25.44 | ||||
| Emergency release | Chain hoist | ||||
| Limit setting of door travel | Digital encoder | ||||
| Operating environment | -20 to +55 °C | ||||
| Max. door area in m² | 25 | 35 | 40 | 45 | 55 |
