Automatic calibration
Quick, hassle-free setup, allowing you to complete the setup within one minute.
Next-generation performance. Built to last.

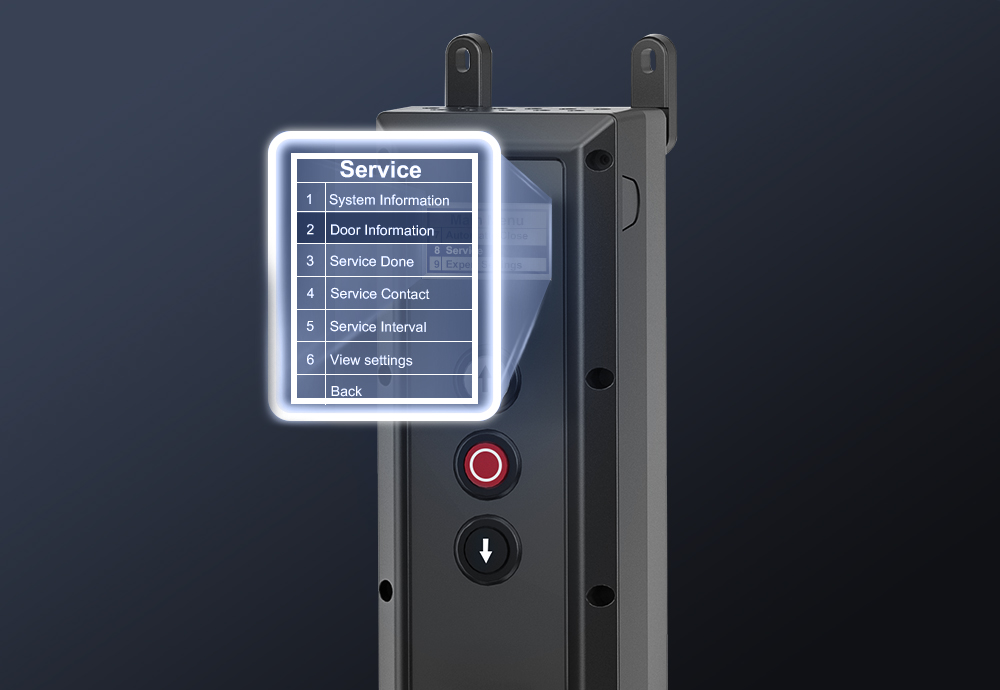

LCD plain-text display
With 4-line LCD plain-text display, you could program easily and receive diagnostics when something is wrong.

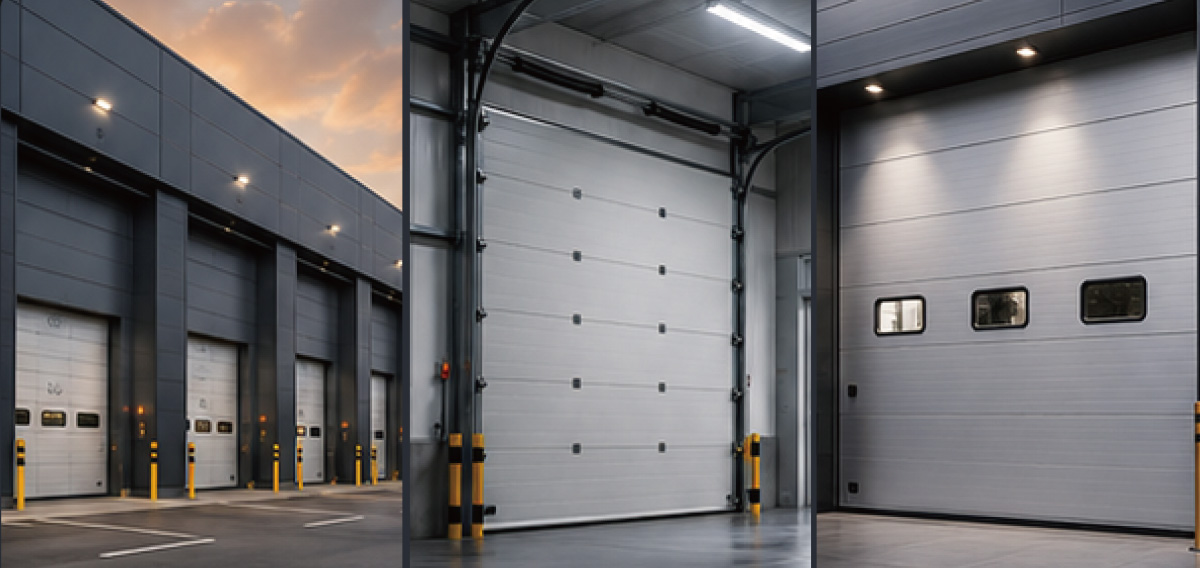

Application cases
Soft start, soft stop
Smooth start/stop offers maximum material protection and a long product life cycle.
Over-torque protection
Advanced torque monitoring system could measure the actual force and stop thedoor's movement when the door is caught in something or the spring breaks.
| Model | GET50D-T | GET70D-T | GET80D-T | GET100D-T |
|---|---|---|---|---|
| Motor power in kW | 0.25 | 0.35 | 0.5 | 0.6 |
| Rated output torque in Nm | 30 | 45 | 55 | 80 |
| Max. output torque in Nm | 50 | 70 | 80 | 100 |
| Rated voltage / frequency | 1~230-240 V AC 50/60 Hz | |||
| Speed in RPM | 24 | |||
| Max. cycles per hour | 30 | |||
| Stroke limit in revolution | 20 | |||
| Diameter hollow shaft in mm | 25.44 | |||
| Emergency release | Chain hoist | |||
| Limit setting of door travel | Digital encoder | |||
| Operating environment | -20 to +55 °C | |||
| Max. door area in m² | 15 | 20 | 25 | 35 |
